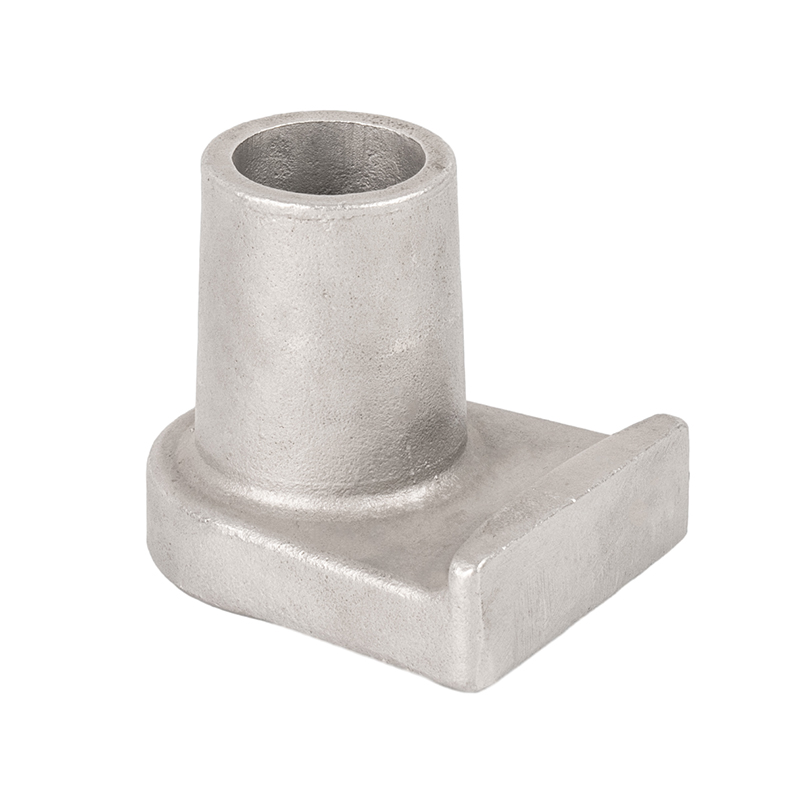

Electrical equipment castings are components formed by melting metal or alloys and pouring them into pre-designed molds, allowing them to cool and solidify. These castings are often used to manufacture critical components such as housings, brackets, connectors, and heat sinks for electrical equipment.
Manufacturing process of Electrical Equipment Castings
Electrical equipment casting is an important engineering technology used to manufacture housings and components of various electrical equipment. They are widely used in the power industry, transportation, construction engineering, industrial automation and other fields. The following will elaborate on the manufacturing process of electrical equipment castings from a professional perspective.
Mold designMolds are a key link in the manufacturing of electrical equipment castings. The design of the mold needs to take into account the shape, size, wall thickness and surface finish of the casting. First, a suitable mold structure is designed based on the geometry and size of the casting. Secondly, taking into account the wall thickness and surface quality requirements of the casting, determine the opening and exit positions of the mold to ensure that the casting can be cooled smoothly and removed from the mold.
Material selectionCommonly used materials for electrical equipment castings include cast iron, aluminum alloys, copper alloys and magnesium alloys. The choice of material depends on the application environment and performance requirements of the casting. Cast iron has good wear resistance and corrosion resistance, and is suitable for some electrical equipment castings that require high strength and durability. Aluminum alloy has low density and good thermal conductivity, making it suitable for manufacturing components such as radiators and casings. Copper alloys have good electrical conductivity and corrosion resistance, making them suitable for manufacturing components such as connectors and wires. Magnesium alloys have low density and good strength and are suitable for manufacturing lightweight electrical equipment castings.
Smelting and pouringOnce the appropriate material is selected, it is melted and poured into a pre-designed mold. The smelting process requires controlled temperature and smelting time to ensure that the material can be completely melted and reach the required chemical composition. The pouring process needs to control the pouring speed and pouring temperature to avoid the generation of pores and inclusions. At the same time, care must be taken to avoid over-pouring, which may cause deformation or cracking of the casting.
Cooling and solidificationThe casting cools and gradually solidifies in the mold. The cooling rate has an important influence on the structure and performance of castings. Too fast a cooling rate may cause stresses and defects in the casting, while too slow a cooling rate may cause the casting to have excessively large grains. Therefore, it is necessary to control the cooling system of the mold and adjust the pouring temperature to ensure that the casting can obtain the ideal structure and performance.
Mold removal and processingAfter the casting solidifies, it needs to be removed from the mold and subjected to subsequent processing, such as deburring, trimming, and surface machining. Disassembly of the mold needs to be done carefully to avoid damage to the casting. Next, the casting needs to be mechanically processed, such as milling, drilling and grinding, etc., to meet the accuracy and surface quality requirements of the casting. Finally, heat treatment and surface treatment are required to improve the strength and corrosion resistance of the casting.
Application fields of Electrical Equipment Castings
Electrical equipment casting is a key engineering technology used to manufacture housings and components for various electrical equipment. They are widely used in the power industry, transportation, construction engineering, industrial automation and other fields.
Power IndustryElectrical equipment castings play an important role in the power industry. They are widely used in power facilities such as power plants, substations and transmission lines. For example, the casing and radiator of a power transformer are usually made of cast iron or aluminum alloy castings. Electrical equipment castings are also used to manufacture key components such as power switchgear, cable accessories and power instruments.
TransportationElectrical equipment castings also have important applications in the transportation field. They are widely used in the railway, aerospace and automotive industries. In the railway industry, electrical equipment castings are used to manufacture key components such as electric motors, engine housings, braking systems and transmission systems. In the aerospace field, electrical equipment castings are used to manufacture aircraft engine parts, avionics equipment casings, and aviation instruments. In the automotive industry, electrical equipment castings are used to manufacture engine casings, transmission systems and chassis components.
Construction projectElectrical equipment castings are also widely used in construction projects. They are used in the manufacture of lighting fixtures, elevators, air conditioning systems and fire protection equipment, among others. For example, the housings and brackets of lighting equipment are usually made of aluminum alloy castings to provide good heat dissipation performance and structural strength. Electrical equipment castings also need to have anti-corrosion, high temperature resistance and wear resistance in construction projects to adapt to harsh environmental conditions.
Automated industryElectrical equipment castings are also widely used in the field of industrial automation. They are used to make devices such as sensors, controllers, robotic arms, and robots. These castings need to have high precision, high strength and wear resistance to meet the accuracy and reliability requirements of industrial automation equipment. For example, robot joints and manipulator arms are usually made of aluminum alloy or magnesium alloy castings to achieve lightweight and high rigidity.
New energy fieldWith the development of new energy technology, electrical equipment castings have also been widely used in the field of new energy. For example, the casings and brackets of solar power equipment and wind power equipment are usually made of cast iron or aluminum alloy castings. These castings need to have good weather resistance and corrosion resistance to withstand harsh outdoor environmental conditions.
